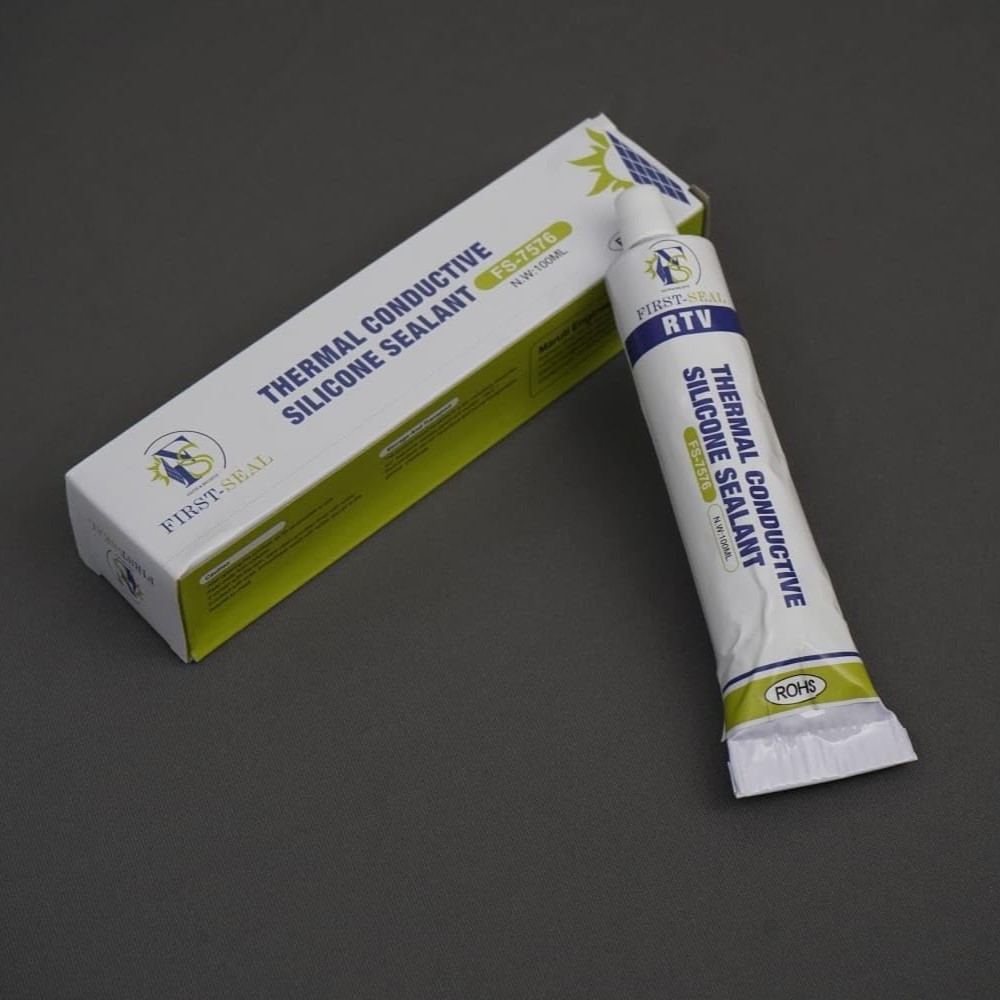

Thermal Conductive Silicone Sealant – First Seal
Thermal Conductive Silicone Sealant for Electronics
Key Features:
- High thermal conductivity performance
- Suitable for heavy-duty computing systems
- Reliable under continuous operation
- Compatible with various electronic modules
5
People watching this product now!
100% Genuine Products
World-Class Quality Standards
Trusted Industry Supplier
Description
A high-quality silicone sealant combining bonding strength with thermal conductivity. Designed for sealing, bonding, and heat dissipation in electronic components.
This sealant cures at room temperature and provides strong adhesion without the need for mechanical fastening.
Key Features:
- Excellent bonding and sealing performance
- Thermal conductivity for heat management
- Easy curing at ambient temperature
- Durable and long-lasting
APPLICATION
- It is widely used in power supply, chargers and other parts for the fixed bonding sealing, heat conduction.
- Led lamp radiator and PCB for bonding and thermal conduction. Suitable for SMD chips.
- For other electronic, electrical components of the bonding heat conduction.
TECHNICAL SPECIFICATION
| Model | Color | Conductivity (W/m-k) |
Density (g/ml) |
Vdaf | Hardness (Shore A) |
Breakdown Voltage (kv/mm) |
Surface Dry Time(Min) | Full Cure Time(H) | Operating Temperature (oC) |
limit Temperature (oC) |
| FS-7576 | White | 1.0 + 0.2 | 1.6 + 0.1 | <0.1 | 30 | >10.0 | 5 ~ 10 | 12 | -40 ~ 180 | -50 ~ 250 |
CAUTION
- Keep away from children
- After the opening of the silica gel, as far as possible to use
- If contact with the skin, wipe clean, and then rinse with water if contact with eyes immediately wash with water and go to the hospital to check.
PACKING
- 50 ml/tube 200 tube/box (size of box : 53.5 X 29.2 X 19.7cm)
- 100 ml/tube 120 tube/box (size of box : 56 X 28.5 X 25.5 cm)
- 300 ml/tube 25 tube/box (size of box : 25 X 25 X 23.5 cm)
- 2600 ml/tube 4 tube/box (size of box : 26.5 X 26.5 X 31.5 cm)
- Customized Special package
STORAGE AND TRASPORT
- This product should be stored in a dry, cool place, avoid rain sun exposure, storage period of six months (25°C).
- Such products are non hazardous and can be transported in general chemicals.
